Fall Protection Anchor Concrete | Abseiler

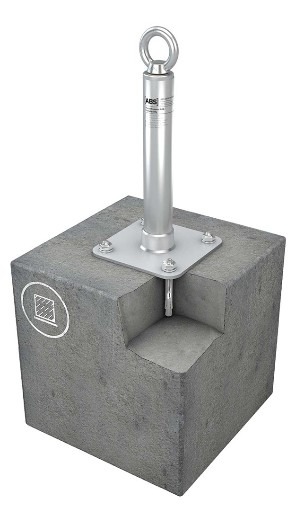

If you are looking for a strong support for a concrete surface: Meet our ABS-Lock X-SR-B single anchorage point - equipped with a base plate (150 x 150 mm) and welded-on supporting rod (Ø 42 mm). Simply attach this anchor to your roof membrane or facade using 4 drive-in dowels. You only need an installation depth of 65 mm to install it. Our ABS-Lock X-SR-B anchor has been specially reinforced to make it ideal for use in a lifeline system. Use this anchorage device as a corner element or end bracket for a system that fits in just perfectly with your architectural design. There is a range of different rod lengths to choose from - from 300 to 1000 mm.

Fall Protection Anchor Concrete | Abseiler

Product code:


Kód produktu:


Standard (mm):

Kotviaci bod má základňu veľkosti 150 x 150 mm a stužený stĺpik s priemerom 42 mm, výška 400 mm.


EN 795:2012


EN 795:2012, A + CEN/TS 16415:2013DIBt Approval | Ü- Sign
