Fall Protection Anchor | ballasted, free standing

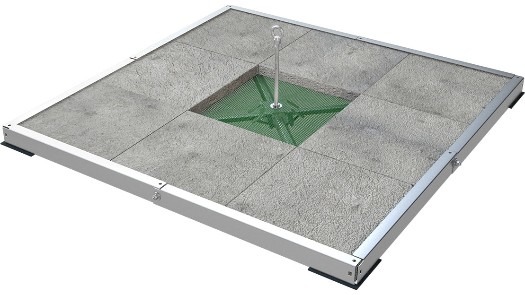

The freestanding anchor point offers a reliable fall arrest solution without the need to penetrate the roof membrane. The system is weighed down using a total of 8 concrete slabs, each measuring 50 x 50 x5 cm and weighing 28 kg. These concrete weights are simply placed on top of a frame. The anchor only takes up a mere 150 x 150 cm of space - much less than is required by other common “on top“ solutions. PE meshing is stretched across the frame. The freestanding anchor is classed suitable for usage as a retention or fall arrest system. It weighs 245 kg, resulting in a total roof load of 108.89 kg per m².

Fall Protection Anchor | ballasted, free standing

Product code:


Kód produktu:


Standard (mm):

Rozmer rámu 1,5 m x 1,5 m. Hmotnosť 250 kg.


EN 795:2012


EN 795:2012, A + CEN/TS 16415:2013DIBt Approval | Ü- Sign
